Low-voltage controller

Clyr Nano Pool Automation Controller

The small one. It runs pumps, heaters, valves and salt cells on low voltage. Anything high-voltage stays in a separate relay cabinet.

Want the relays and valve power in one cabinet? See Clyr+

Most Popular

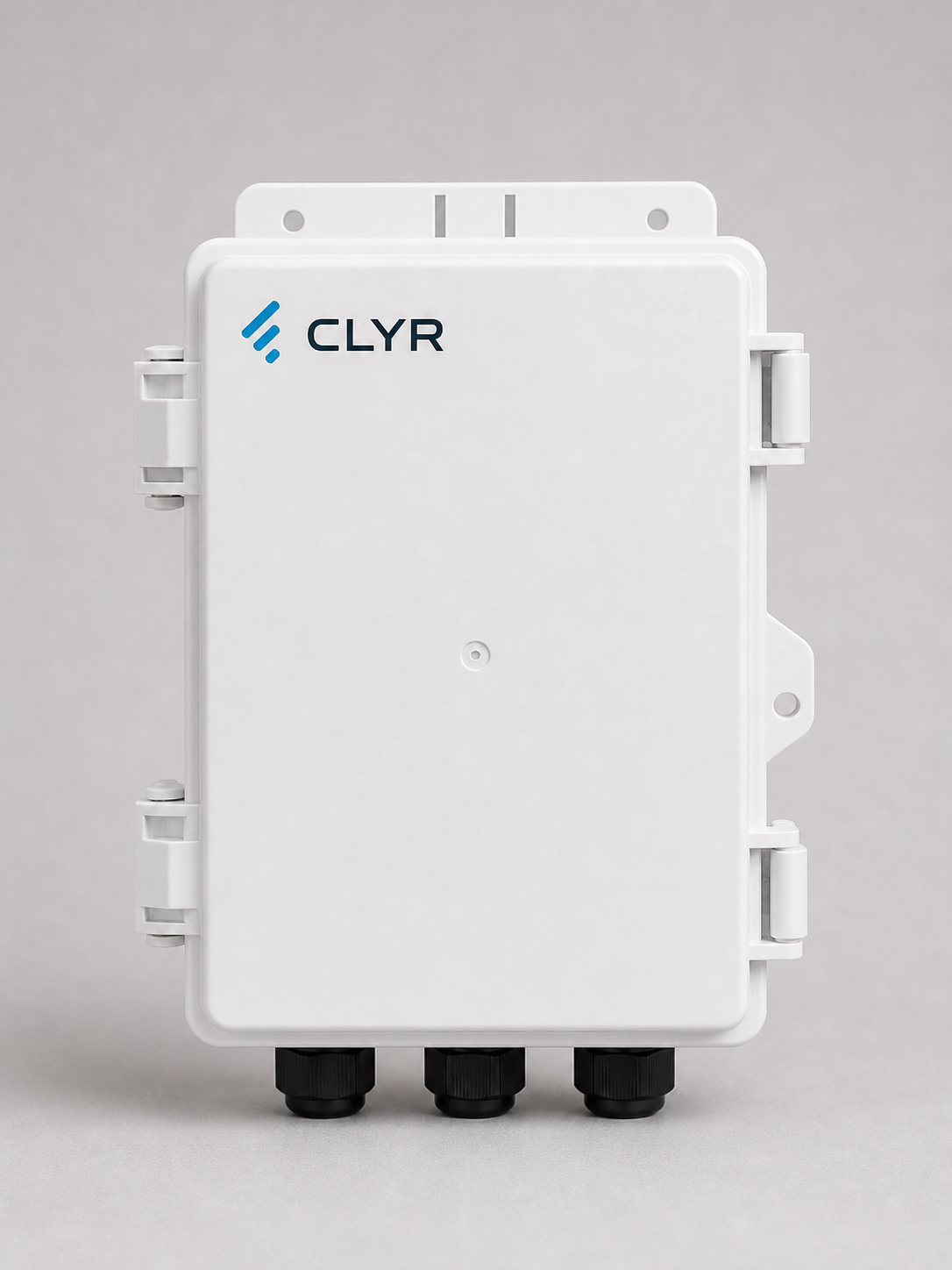

White Clyr Nano enclosure with CLYR logo, mounting tabs, and three cable glands

What it does

Runs the pad on low voltage.

Nano handles pumps, heaters, valve actuators, lights and salt systems from a small box with nothing over 24 V inside. Single-speed pumps switch through relays in a separate enclosure.

4 valve actuator ports
5 AUX relay ports
2 dry-contact heater outputs
Up to 4 variable-speed pumps
WiFi and Bluetooth
Offline mode
Mobile app control
AI optimization
Cloud analytics

Specifications

The specs.

Nano has the same valve and heater outputs as Clyr+. The difference is that high-voltage relays and valve power live outside the box.

TypeLow-voltage controller
Power input9–24 VDC (24 VDC supply included)
Built-in high-voltage relaysNone (uses a separate relay cabinet)
AUX relay ports5
Valve actuator ports4 (24 VAC supply not included)
Dry-contact heater outputs2 (1 on Generation 3 and earlier)
RS-485 networks2
TouchscreenOptional
WiFi and BluetoothYes
EthernetOptional module
Offline modeYes
Mobile app controlYes
AI optimizationYes
Cloud analyticsYes
Variable-speed pumpsUp to 4
Smart relaysUp to 3
External temperature sensorsUp to 2
CO2 outputDedicated port
Enclosure ratingIP65

On WiFi

Check the pool from anywhere, get alerts when something’s off and take updates automatically.

When the internet goes down

Your pool keeps running. Essential functions run locally, and everything syncs when the connection comes back.

Three-year limited warranty

Eligible Clyr Nano hardware is covered for defects in materials and workmanship for three years from the original purchase date. Approved claims receive an exact-SKU replacement.

View the limited warranty

Is Clyr Nano right for your pad?

Good fit

  • You have supported variable-speed pumps, heaters, valves or salt systems
  • You want the controller itself to stay low voltage
  • You already have a relay cabinet, or can add one for high-voltage gear

Not the right fit

  • You want to switch a single-speed pump without a relay cabinet
  • You want high-voltage wiring in the box. Nothing over 24 V goes inside.

Clyr Nano Owner's Manual

Rev B installation, wiring, safety, and commissioning reference for the low-voltage Clyr Nano.

Getting Started

Get Clyr Nano wired and ready

Official Clyr Pool controller setup for Clyr Nano.

Things people ask about Nano.

Can Clyr Nano control a pool heater?
Yes. It has two dry-contact heater outputs on Generation 4 and later, and one on Generation 3 and earlier.
Can Clyr Nano control valve actuators?
Yes. There are four ports for pool and spa, return, suction and water feature valves. You’ll need an external 24 VAC supply, which isn’t included.
Can Clyr Nano run a single-speed pump?
Yes, through a separate relay cabinet. High-voltage wiring can’t go inside Nano. If you’d rather have one cabinet, Clyr+ has the relays built in.
How many pumps can Clyr Nano control?
Up to four variable-speed pumps across its two RS-485 networks.
Is Clyr Nano weatherproof?
The enclosure is IP65 rated and generally waterproof on a normal outdoor pad, as long as it’s installed correctly.
What’s in the box?
Clyr Nano, a wiring harness with lever clips, a 24 VDC power supply, two relay jumpers and a quick start guide. You’ll supply RS-485 wiring, mounting hardware, an Ethernet cable if you use one and a 24 VAC supply if you run valves.

Get Nano on your pad.

Buy it, talk to a specialist or start with monitoring and equipment control.
